Sterybox® Medical-grade UVC Airborne Disinfection Device
STERYBOX® Medical-grade UVC Airborne Disinfection Device
Effectively kills 99.99% of bacteria, viruses and spores
The only device with official microbiological decontamination results and dedicated scientific documentation performed by independent laboratories recognized by Government Health Institutions. Effectively eliminate Escherichia Coli, Staphilococcus aureus, Pseudomonas aeruginosa, Salmonella bony, Listeria innocua, Aspergillus niger, Candida Albibans and Coronavirus etc…
CE certified. Made in Italy.
Over 25 years of experience in air sterilization equipment.
The installation of hundreds of unit per year in hospitals and operation theatres is a guarantee itself.
Suitable for ambulances, clinics, laboratories, schools, children care centers, elderly home, club houses, offices shopping malls, food & beverages industries or household etc…
-
- Sterybox 50A in Clinic
-
- Sterybox in Dental Office
-
- Sterybox in Lab
-
- Sterybox X-Ray room
-
- Sterybox Ambulance
-
- Sterybox Kraft Food
How does it work
The air is aspirated by the device through two noiseless axial fans and it is subjected to an intense germicidal UV-C radiation field (wavelength- 254 nanometers) inside the device, through a WORLDWIDE PATENTED (WO 02/076517) coil system. By damaging the Deoxyribonucleic Acid (DNA) of the microbes, it kills and inactivates 99.99% of bacteria, viruses and spores in the air; the sterilized air is then ready to be safely released into the room. With a continuous change of air, it can make a total disinfection of the room air in 20 minutes.

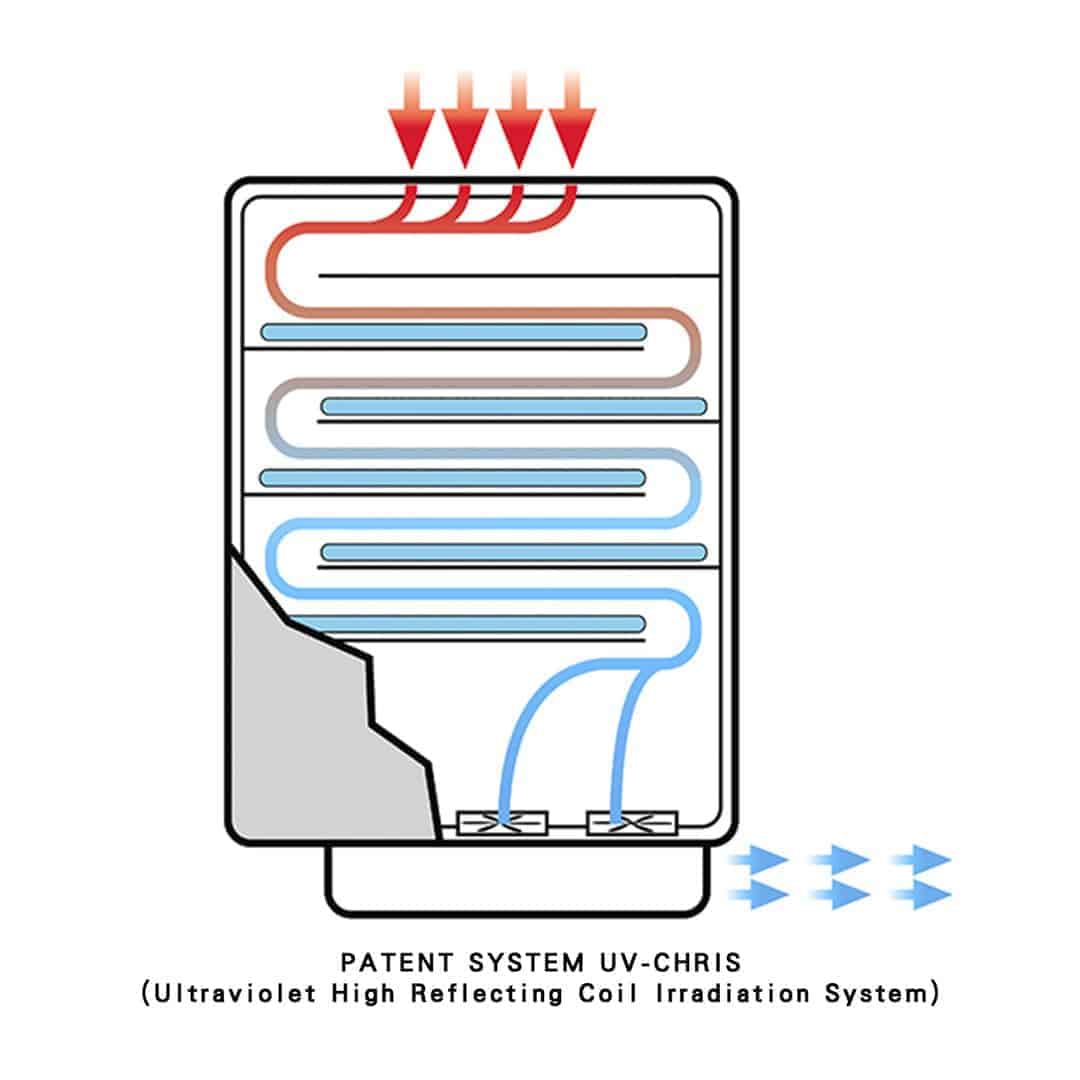

Patented UV-CHRIS design
The patented UV-CHRIS (UltraViolet High Reflection Coil Irradiation System) delivers a concentration of ultraviolet radiations up to 400% times higher than the standard linear flow devices available in the market.
In the system, five UV lamps of 25 watts each are arranged in a multi-stadium horizontal way and each is completely surrounded by reflective mirrored stainless steel labyrinth panels to increase light intensity four times the initial generated UV-C rays. This strong UVC irradiation is applied on air which flows in a ‘coiled’ manner through a 2.8-meter path, efficiently eliminating up to 99.99% (Tests show a virtual 100%) of bacteria, viruses and spores present in the air.
Other features include:
- An internal silencer reduces the noise which makes the operation lower than an ordinary air conditioning system
- An electrical control switch allows to set times for the automatic starting and stopping of the device, both daily and weekly.
Safety
It can be kept working 24 hours a day regardless of the presence of persons: no fraction of the germicidal radiation can in fact strike directly to eyes and skin, as the radiation is contained inside the device; unlike those systems with UV-C radiates to the surroundings, this device guarantees a total operative safety for users. There is also a safety anti-opening switch control that switches off the UV light in the event that the box is accidentally opened.
Simple Maintenance
No risky handling or replacing contaminated filter
Stainless steel panel can be easily cleaned with detergent.
Maintenance is minimum: a change of lamps every 8000 hours, with an average duration of THREE years for office-time use (based on daily usage of 9 hours, five days in a week).
Specifications
Name: Sterybox 50A
Suitable for room floor size of 200 square feet
Sterilization time: 20 mins for static room; 30 mins for dynamic room
UVGI-lamp installed: 5 lamps, 25 watts each
Case material: Stainless steel
Dimension: width 50cm, height 60cm, thickness 15cm.
Weight: 22kg
Other models are available upon requests.
Exclusively available at The HomeCare Medical Ltd.
Effectiveness Evaluation of Apparatus Sterybox in Static and Dynamic Use Conditions
Bio Lab Static Test (Closed room with very high bacteria concentration)
100% reduction
| Time (minutes) | % Reduction |
| 20 | 100 |
| 25 | 100 |
| 30 | 100 |
| 40 | 100 |
| 50 | 100 |
| 60 | 100 |
| 120 | 100 |
| 180 | 100 |
Biolab Dynamic Test (Open room with people working and very high bacteria concentration)
>92% reduction
| Time (minutes) | % Reduction |
| 30 | 97.96 |
| 60 | 98.31 |
| 120 | 95.45 |
| 180 | 98.70 |
| 240 | 100 |
| 300 | 92.50 |
| 360 | 92.86 |
Biolab Dynamic Test in microbiology lab (Clean room air standards)
100% reduction
| Time (minutes) | % Reduction |
| 1 | 100 |
| 3 | 100 |
| 6 | 100 |
| 12 | 100 |
Evaluation of the Effecitveness of Apparatus Sterybox for Baterical Air Decontamination
UV-C lamps off | One fan on
| Air sample time (seconds) | Air sample volume (litres) | Log reduction |
| 12 | 400 | 3.535 |
| 20 | 600 | 3.447 |
| 40 | 1200 | 3.355 |
| 80 | 2400 | 3.658 |
UV-C lamps on | One fan on
| Air sample time (seconds) | Air sample volume (litres) | Log reduction |
| 12 | 400 | 4.969 |
| 20 | 600 | 5.066 |
| 40 | 1200 | 4.918 |
| 80 | 2400 | 4.969 |
UV-C lamps off | Both fans on
| Air sample time (seconds) | Air sample volume (litres) | Log reduction |
| 12 | 400 | 3.329 |
| 20 | 600 | 3.490 |
| 40 | 1200 | 3.249 |
| 80 | 2400 | 3.328 |
UV-C lamps on | Both fans on
| Air sample time (seconds) | Air sample volume (litres) | Log reduction |
| 12 | 400 | 5.457 |
| 20 | 600 | 5.726 |
| 40 | 1200 | 5.492 |
| 80 | 2400 | 5.249 |
Log Reduciton Chart
| Log reduction | % Reduction |
| 1 | 90 |
| 2 | 99 |
| 3 | 99.9 |
| 4 | 99.99 |
| 5 | 99.999 |
Airborne Pathogens Database
Sterybox UV-CHRIS patented system is effective against all the listed viruses and bacteria.
Detailed information is available for reference.
